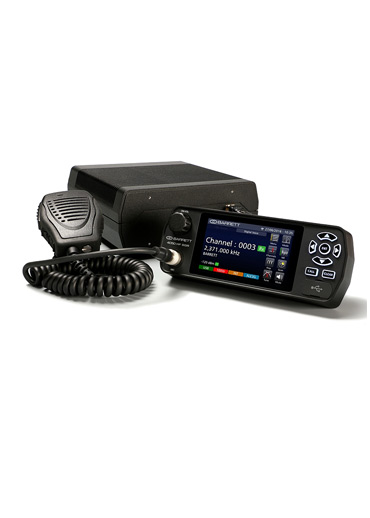

Software-Defined Architecture
The Barrett 4050's advanced Software-Defined architecture provides complete software control of RF modulation and
bandwidths, providing unprecedented flexibility, reliability and ease of upgrade. Custom emissions and filter bandwidths of up to 16 kHz can be enabled with a simple software upgrade.
High Resolution Touch Screen Control
Access to the most advanced intuitive HF Radio interface on the market via a super bright high definition 24-bit colour touchscreen providing maximum view ability under all lighting conditions.
Multi-Language Menu
Change the Barrett 4050 language setting at the touch of a button. Each radio ships with multiple language menus including English, French, Spanish, Arabic, Russian and Chinese.
| Frequency Range | Tx: 1.6 MHz - 30 MHz / Rx: 250 kHz - 30 MHz |
| Number of Channels | 500 Channels |
| Operating Temperature Range | -30°C to + 70°C, %95 humidity, non-condensing |
| Dimensions | 188 x 83 x 251mm |
| Weight | 2.55kg |
| RF Output Power | 150W PEP (24V DC) / 125W PEP (12V DC) |
| Receiver Sensitivity | -121dBm (0.20 μV) (10dB SINAD) |
| Durability Standard | MIL-STD 810G |
