Non-slip, large PTT
The large PTT button is designed to provide non-slip, confident-click, even wearing gloves.
800mW loud audio
The large 45mm speaker delivers up to 800mW* of loud audio! Digital modulation adds distinct clarity to received voices.
Long Lasting Battery Life
The IC-F4102D series has three types of battery packs and case to choose from. Lithium-Ion (Li-Ion) battery pack, BP-265, Nickel metal hydride (Ni-MH) battery pack, BP-264 and battery case, BP-263 are selectable for your preference.
Channel announcement
When you rotate the channel knob, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.
Bright 3-Color LED
The bright LED shows the operating status: red for transmit, green for listening, or orange for low battery, etc.
Hands-free operation
Optional headset with plug adapter cable OPC-2004LA provides hands-free operation.
Built military rugged!
Okay to use in the rain! Tested to IP54 and 11 categories of MIL STD-810 F environmental tests.
Compact and light weight
58×111.5×36.5 mm
320g/310g with BP-265. (VHF/UHF)
dPMR™ Mode 1/2 Operation
The IC-F4102D series provides basic operation in dPMR Mode 1, 2 conventional mode. It is also compatible with Mode 2 multi-site system.
Built-in 2-Tone and 5-Tone (Analogue mode)
2-Tone and 5-Tone signalings give you selective calling, quiet stand-by and other convenient functions. The radio stun and kill functions disable a radio over the air and the revive function restores the stunned radio.
Other Features
CTCSS/DTCS encoder/decoder*
BIIS PTT ID transmission*
DTMF autodial
Low battery alert
2-step power save
PC programmable
Time out timer
Talk around function
Lone worker function
Surveillance function
Forced narrow function*
Escalating alarm
* analogue only
| Frequency Range | 136–174MHz or 400-470 MHz |
| Number of Channels | 16 Channels |
| Operating Temperature Range | –25˚C to +55˚C |
| Dimensions | 58×111.5×36.5mm (With BP-265) |
| Weight | 320g (BP-245H ile) |
| RF Output Power | 5W, 2W, 1W (Hi, L2, L1) |
| Receiver Sensitivity | –4dBμ emf typical (Digital comms at %1 BER) |
| Audio Output Power | 800mW Internal Speaker at 12Ω load with 5% distortion. 400mW external Speaker at 8Ω load with 5% distortion. |
| Water & Dust Protection | IP54 (Dust-protection and water resistant |
| Durability Standard | MIL-STD 810F |
 | MB-124 Alligator type belt clip. |
 | CP-23L Cigarette Lighther Charge Adaptor for use with BC-213 |
 | HM-159L Full size, durable speaker-microphone provides loud audio |
 | HS-97 Throat microphone (OPC-2006LS required) |
 | OPC-515L DC cable |
 | HS-94 Earphone-headset |
 | HS-95 Behind-the-head headset (OPC may be required) |
 | BP-263 6 x AA (LR6) battery case |
 | BP-264 Ni-MH, 7.2V 1400mAh (approx. 14 hours of useage) |
 | BP-265 7.4V Li-Ion, 2000mAh (approx. 20 hours of useage) |
 | BC-192 16-hour regular charger for BP-264 (Ni-MH battery) |
 | BC-191 2-hour/2.5-hour rapid charger for BP-264 Ni-MH battery |

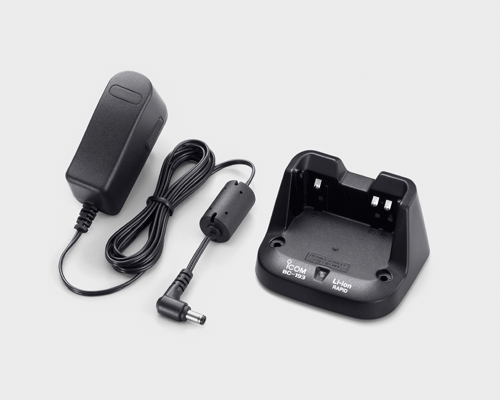

 | BC-193 2-hour/2.5-hour rapid charger for BP-265 Li-Ion battery |
 | OPC-2004 Required when using any of these headsets |
 | HM-151 Remote control microphone |
