A New Legacy: Slimmer, Smaller and Infinitely Better

IC-F52D VHF Digital Handheld Radio

- Small, light and feature packed
- Intelligent battery management helps to extend the battery life
- Built-in Bluetooth®, voice recording, active noise cancelling functions
- OTAP (Over-the-Air Programming) function easily reconfigures in-the-field radios
- Multiple operating modes
- Motion/stationary detection, man down and lone worker functions
- IP67 waterproofing and dust-tight protection
- MIL-STD 810G military standards

Ask a Question

EXPERIENCE THE DIGITAL SOUND

Hardware Features

Programmable vibration warning
Built-in Bluetooth® for audio and data
Rich accessory options such as lapel microphones and headphones
Optional HM-233GP GPS-enabled speaker-microphone
14-pin accessory connector
Wireless radio programming via Bluetooth®

General features

136-174 frequency band
512 Channel / 128 Zone
14 character dot-matrix backlit LCD display
Programmable features (including Turkish)
1300mW high power speaker
MIL-STD-810G standards
Battery management system and smart battery feature
Trunk feature with license update

Security and Safety

Digital / Analog voice scrambler (Low level encryption)
Power ON password
Radio stun/revive/kill
Remote monitor (NXDN)/ambience listening (dPMR)
Emergency key for emergency call
Man down function
Lone worker function
Motion/stationary detection

Operational and Platform Features

12.5 kHz digital mode (NXDN conventional)
Analogue mode• Analog / digital interoperability
Operability in NXDN or dPMR mode 1/2 conventional systems
Interoperability in NXDN or dPMR multi-site conventional IP systems
NXDN Type-D single / multi-site trunking feature with license key
Trunking dPMR Mode 3 with license key

Digital Audio and Data Features

AMBE + 2 ™ vocoder
Over the air radio programming feature
Call feature for individual, group and all
Late entry for group calls
Status call and query
Short data message
Call alert (NXDN)
GPS position information (HM-233GP required)
Transparent data mode
Over-the-Air Alias (OAA) sends own name with a call
Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (NXDN type-D trunking)

Frequency Range	136–174MHz
Number of Channels	512 channels / 128 zones
Operating Temperature Range	-30ºC to +60ºC / -22ºF to +140ºF
Dimensions	56 × 91.5 × 29mm (with BP-290)
Weight	230gr
RF Output Power	5W, 2W, 1W (Hi, L2, L1)
Receiver Sensitivity	–4dBμ emf typical (Digital comms at %1 BER)
Audio Output Power	1300 mW typ. (at 5% distortion, 8 Ω load) 1000 mW typ. (at 5% distortion, 8 Ω load)
Water & Dust Protection	IP67 (Dust and waterproof)
Durability Standard	MIL-STD 810G

	MB-96F Leather belt hanger (for use with MB-98)
	CP-23L Cigarette Lighther Charge Adaptor for use with BC-213
	MB-96N Leather belt hanger
	HS-97 Throat microphone (OPC-2006LS required)
	MB-136 Swivel type belt clip
	SP-27 Tube earphone with 3.5 mm plug. For use with HM-222 or AD-135
	VS-5MC PTT switch cable with VOX function. VS-5MC is required when using any of HS-94, HS-95 or HS-97.
	SP-28 Earhook type earphone with 2.5 mm plug for use with HM-163MC
	SP-26 Tube earphone with 2.5 mm plug for use with HM-163MC
	AD-135 3.5 mm earphone jack adapter for use with any of SP-27, SP-29 or SP-40 earphone.
	VS-3 Bluetooth® Headset
	OPC-515L DC cable
	OPC-656 DC power cable
	BC-214 Multi charger unit. Charges 6 radios/batteries at once
	HS-94 Earphone-headset
	HS-95 Behind-the-head headset (OPC may be required)
	BC-219N Charges the BP-283/BP-284 in 3/4.5 hours (approx.) respectively.
	LC-188 Hard type carrying case
	LC-187 Hard type carrying case. Charging is possible while wearing the case.
	HM-222 Speaker microphone with 3.5 mm earphone jack. IP68 protection
	HM-233GP GPS speaker microphone. IP67 protection.
	MBB-3 Alligator belt clip. Same as supplied
	BP-290 Rechargeable Li-ion battery with intelligent reporting. IP67 protection
	BP-291 LR6 (AA) × 5 battery case. IP54 protection.

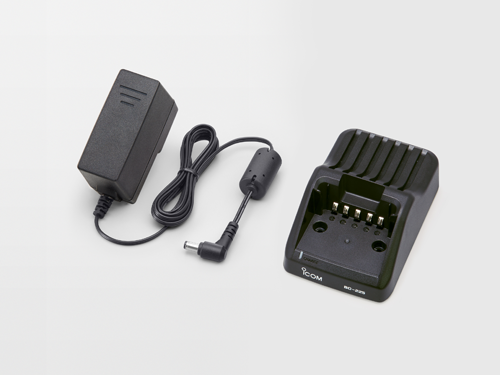

	BC-225 Charges BP-290 in 2.5 hours.
	HM-163MC Tie-clip microphone with 2.5 mm earphone jack (EH-15B required for earpiece)
	EH-15B Earphone with 2.5 mm plug for use with HM-163MC
	SP-40 Earphone with 3.5 mm plug. For use with HM-222 or AD-135
	3152B_F Carry Case
	BP-294 3.150mAh Lithium-Ion 7.2V Battery
