Intuitive Touch Screen Operation
The intuitive touch screen interface provides quick and smooth operation. The large 5.5 inch display (320×128 pixels) responds naturally to the touch allowing you to change settings, enter frequencies, edit memory channels with ease.
DV/DV Dualwatch
The ID-5100E can receive both FM/FM and FM/DV mode signals simultaneously. Two DV mode signals can be monitored for receive on either channel. You can check other repeaters or other channel activities while waiting for the main repeater.
* Main band audio has priority, if two DV signals come in at the same time.
Integrated GPS Receiver
The ID-5100E has an integrated GPS receiver in the controller and shows own position, course, speed and altitude on the display. The GPS position information can be used for exchanging position reports, tracing the GPS log and searching for nearby repeater sites.
DV/FM Repeater List Function
The DV/FM repeater list function assists you in accessing nearby repeaters, even when you are visiting an area for the first time. The function searches for a nearby repeater using the repeater memories and GPS position information.*To use the automatic repeater list function, the position data of the repeater is required. The ID-5100E will be shipped with a limited number of repeater memories preprogrammed.
SD Card Slot for Voice and Data Storage
When used with an SD card, the SD card can store various contents including voice memory, DV auto reply message, TX voice message, QSO log, RX history log and GPS log data. Memory channels, repeater memories and other personal settings can be saved to the SD card and can be loaded to the transceiver.
VS-3 Bluetooth Headset
The optional Bluetooth® headset, VS-3 provides hands-free communication and can remotely control the ID-5100E with three programmable buttons.
* Optional UT-133/A Bluetooth® unit must be installed in the ID-5100E.
RS-MS1A Android Application
The RS-MS1A allows you wirelessly connect the ID-5100E and remotely set DR functions, link with a map application and send/receive messages over the DV mode. In addition, pictures taken by the Android™ device can be transmitted in the DV Fast Data mode or DV mode. *Either optional UT-133/A Bluetooth®unit or OPC-2350LU Data cable is required. *Some functions may not work properly, depending on Android™ phones and devices used.
Other Features
| Frequency Range | Transmit: 144–146, 430–440MHz Receive: 118–174, 375–550MHz |
| Number of Channels | 1000 regular channels, 4 call channels, 50 program scan edges and 1200 repeater memories |
| Operating Temperature Range | –10°C to +60°C |
| Dimensions | 150×40×151mm & 150×50×27.2 mm |
| Weight | 1.5kg; 3.3lb |
| RF Output Power | 50W, 15W, 5W |
| Receiver Sensitivity | Less than 0.18μV (at 12dB SINAD, for amateur bands only) |
| Audio Output Power | 0,2W at 10% distortion with an 8Ω load |
| Water & Dust Protection | IPX7 (Waterproof protection) |
 | OPC-478UC USB Type Programming Cable |
 | MBF-4 For mounting the main unit. |

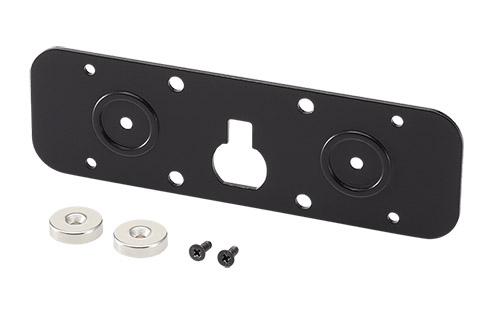

| | MBA-2 Required for mounting MBF-1 |
 | MBF-1 Suction cup mounting base. MBA-5 is required. (MBA-1 is required for IC-7100) |
 | UT-133 Bluetooth® Unit |
 | VS-3 Bluetooth® Headset |
 | SP-30 4 inch (102.5mm) diameter speaker |
 | SP-35 2m (6.5ft) cable external speaker |
 | SP-35L 6m cable external speaker |
 | HM-207 DTMF Hand Microphone |
 | HM-154 Standart hand microphone |
 | OPC-440 5m (16.4ft) microphone cable |
 | OPC-647 2.5m (8.2ft) microphone cable |
 | OPC-589 For use with an 8-pin microphone |
 | OPC-1156 3.5m (11.4ft) controller separation cable. |

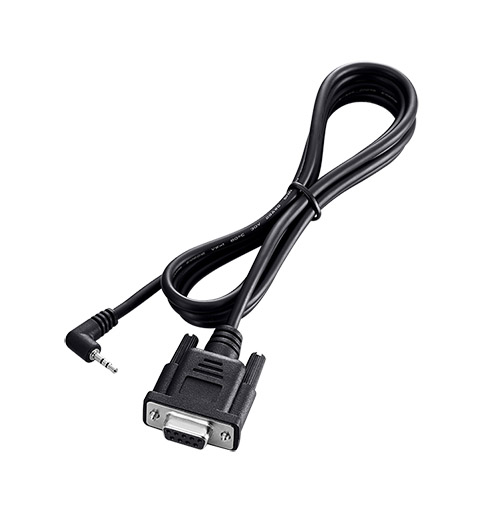

| | OPC-1529R RS-232C type |
 | CT-17 CI-V Level Converter. For remote transceiver control from a PC equipped with an RS-232C port. |
 | OPC-2350LU USB cable for connection with an Android™device or a PC. |
